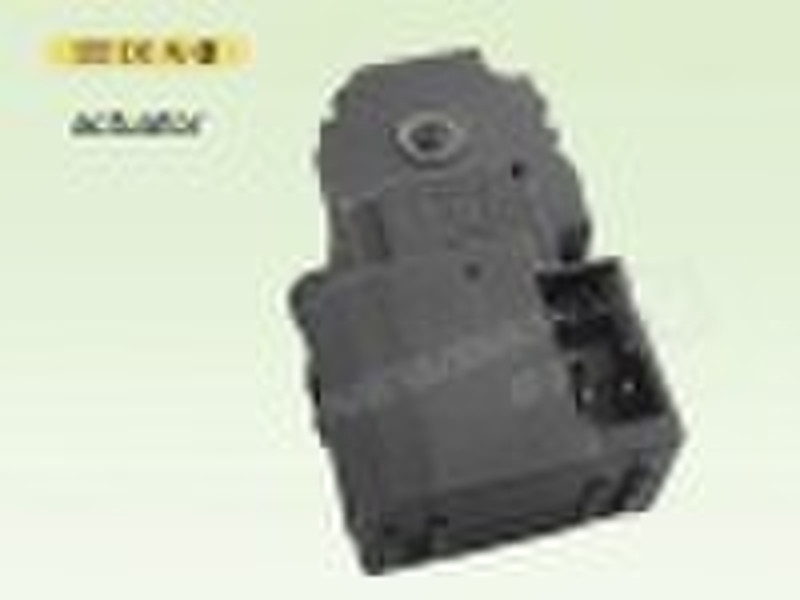

Automobile Air Conditioning Actuator
Michelle Li
Contact person
Basic Information
| Place of Origin | Henan China (Mainland) |
|---|---|
| Brand Name | Newbase |
| Model Number | TEMP II |
TEMP II actuator: Continuously adjust the temperature by switching polarity of actuator wiring. At the same time, the actuator would send the ventilation door position signal back to system. Application case: WINIA MANDO, HYUNDAI, SSMC, DAIHAN, DENSO, IVECO. Technical data: Power supply12/24/48 VDCPower consumption3WCurrentMax.70mAElectrical cableMax.1m X 0.5mm²Direction of rotationCW/CCWAngle of rotation84°/108°+2°(Max. 300°/adjustable)Torque4kgf.cmRunning time3.5+0.5rpmLocked torque12kgf.cmLocked currentMax.250mANoise levelMax.42dB(A)Ambient temperature-3080Storage temperature-4085LifeMax.500,000 cycleDimensions83X50X28(mm)Weight94gQuality certificationsTS16949/ISO9001
Delivery terms and packaging
Packaging Detail: On your request Delivery Detail: Depend onthe quantity
